Sheet and Tube Fiber Laser Cutting Machine

Sheet and Tube Fiber Laser Cutting Machine is a combination of two technologies in one system, reducing costs and increasing production efficiency.

This combined laser cutting machine can cut sheets and various tubes and profiles in circular, square, U-, and H-shapes up to 50 mm thickness and 320 mm diameter.

Therefore, among all fiber laser cutting machines, this unit is one of the most practical options.

In fact, the sheet and tube cutting machine, with an optimized design, high laser precision, and intelligent control systems, not only boosts production speed but also saves energy, raw materials, and time.

At Funoon Laser, you can customize this machine to your exact needs.

We are your technical partner along the production journey.

With comprehensive support services and warranty for the machine and critical parts, we help keep your line running with minimal downtime!

Top 15 Advantages of Sheet and Tube Fiber Laser Cutting Machine

A system that cuts both sheet and tube can offer numerous advantages for your business.

Below are 15 of the most essential benefits of the Sheet and Tube Fiber Laser Cutting Machine:

1- Combining two machines means lower costs and reduced space usage

Sheet and tube laser cutting machines combine two separate systems, enabling simultaneous cutting of various tubes, profiles, and metal sheets in a single unit.

This dual-purpose design not only occupies less space in your workshop (factory) but also reduces the following costs:

• Purchase and installation costs: You buy only one machine, so you pay for a single purchase and installation. Moreover, when you buy a combined laser cutting machine from Funoon Laser, transportation, installation, and training are free.
• Labor costs: This machine requires only one operator, whereas with two separate machines, you’d need two operators.
• Energy consumption: A single system with a single source and a single cooling unit consumes less energy.
• Lower maintenance: With one dual-purpose machine, you no longer need to pay for the maintenance of two separate systems.
• Higher productivity: Thanks to system integration, production downtime decreases and the cost per part drops.

2- High cutting speed and time savings

Our dual-purpose machines deliver up to 1.5G maximum acceleration and 100 m/min maximum traverse speed, increasing throughput so you can produce more parts in less time.

This capability opens the door to taking on more and larger projects.

3- Precision and repeatability with minimal error in every laser cut

With the Sheet and Tube Fiber Laser Cutting Machine, you can produce parts with high accuracy and quality.

Its precision comes from a high-accuracy positioning and advanced motion control system with the following specifications:

• Positioning accuracy: ±0.03 mm/m
• Repositioning accuracy: ±0.02 mm/m

4- Intelligent Nesting and up to 40% scrap reduction

Cypcut software, guided by the Nesting system, arranges parts on the sheet or tube to produce the maximum number of pieces with minimal material waste.

An intelligent scanner also detects unused zones on the metal and places new parts into those gaps, further minimizing waste.

5- Capability to cut a wide range of sheet and metal tubes

By purchasing sheet and tube cutting machines, in addition to cutting sheet, tubes, and profiles in round, square, U-, and H-shapes, you can cut a broad range of metals with high accuracy and speed, including:

• Brass
• Aluminum
• Copper
• Steel
• Stainless steel
• Galvanized steel

6- Stress-relieved, robust machine bed

The chassis and cutting table of all Funoon Laser machines undergo thermal stress relief.

This process strengthens the frame against thermal stress, vibration, and deformation over time.

You can confidently cut sheets and tubes of varying thicknesses and lengths at high speed and with high power.

The stress-relieved chassis reduces vibration during operation, increasing cutting accuracy.

So, with the Sheet and Tube Fiber Laser Cutting Machine, you can produce precise, delicate parts.

7- Industrial chiller designed for the Middle East heat

The industrial chiller supplied with the Sheet and Tube cutting machine is well-suited to the UAE climate.

This water-cooled chiller preserves optimal performance and extends machine life, helping you maintain production with minimal stoppage.

8- High-quality sources from leading global brands

All Funoon Laser machines, especially the dual-purpose model, use sources from reputable international brands, delivering excellent performance with a service life of up to 100,000 hours.

We source Funoon Laser power sources from:

• Raycus
• IPG Photonics
• MAX

9- Intelligent control for higher productivity

These machines feature CNC control, and the sheet and tube cutting process is optimally directed and managed by intelligent operating systems such as Cypcut, enabling the machine to run at maximum acceleration.

This intelligent control includes features such as autofocus, automatic anti-collision, and precise edge detection for sheets and tubes, significantly increasing cutting productivity.

10- Clean cuts, ready for assembly or welding

With this dual-purpose cutting machine, you can produce complex joints and specialized parts. Why?

Because this machine cuts sheet and tube with exceptional precision, delivering an output with perfectly smooth, accurate edges.

As a result, no post-processing is required; you can move parts directly to welding or assembly after cutting.

11- Operator safety with integrated fume and dust extraction

Funoon Laser sheet and tube cutting machines include an internal fume and metal-particle extraction system that controls dust, improves air quality, and reduces health risks for operators and staff.

Integrated extraction within the cutting table also clears the beam path, improving cutting accuracy and quality and enhancing overall machine performance.

By removing metal particles during cutting, the risk of damage to sensitive components, such as the lens, is reduced, extending machine life and improving cut stability.

12- Modular cutting table design

When you buy a Sheet and Tube Fiber Laser Cutting Machine from Funoon Laser, you can specify a modular table.

This table boosts machine and production efficiency while reducing maintenance costs.

Our modular tables are sectional and can be replaced.

If any section is damaged, you can replace just that section without changing the entire table.

The swap is simple, quick, and performed by the operator, avoiding prolonged downtime for the machine and line.

Regular replacement of worn sections ensures a consistently flat, accurate cutting surface and stable quality throughout production.

If you operate in metal fabrication, a dual-purpose laser cutter with a modular table is ideal.

With this table, you can lower maintenance costs and increase the efficiency of Sheet & Tube cutting systems.

13- Smart chucks for precise cutting with minimal material loss

Funoon Laser dual-purpose cutters include 2 to 4 self-adjusting chucks that increase cutting accuracy, reduce scrap, and raise throughput.

These chucks hold the tube precisely along a single axis with sufficient stability so that, even at high speed and power, the tube does not shift, reducing cutting errors.

With more chucks, you can cut longer tubes up to 12 m. And because the holding system is automatic, you don’t need multiple operators to secure the tube.

14- Series options for every production scale

Sheet and Tube Fiber Laser Cutting Machine from Funoon Laser is available in two series:

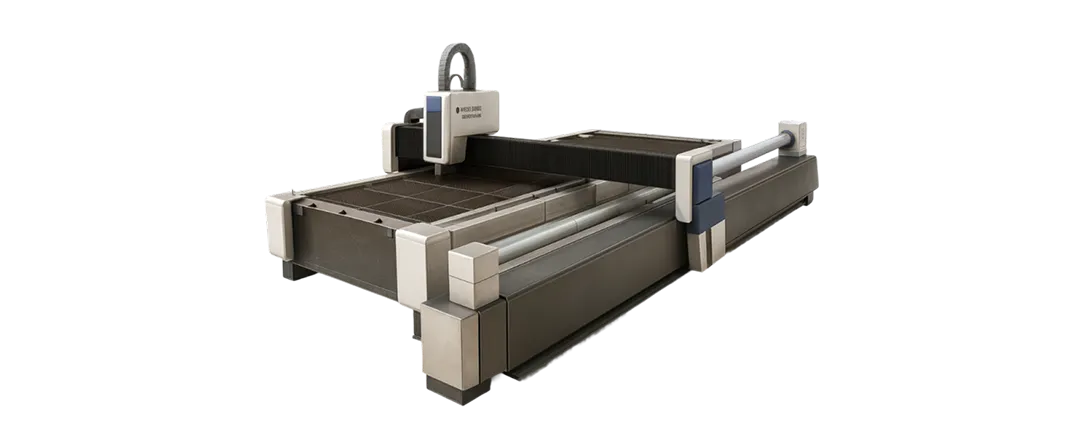

• Economical: suitable for workshops with smaller production lines; 3–6 kW power; low energy consumption; economical maintenance; sheet and tube cutting up to 16 mm thickness and 150 mm tube diameter.
• Professional: suitable for large workshops and mass production; 6–60 kW power; sheet and tube cutting up to 50 mm thickness and 320 mm tube diameter (depending on the cutting head and laser source, clean and precise cutting of steel up to 100 mm thickness is also readily achievable).
  This range helps you select power tailored to your workload and materials, keeping your production speed stable and optimized while enabling cost savings.

15- Broad applications across industries

Sheet and Tube Fiber Laser Cutting Machine covers virtually all production needs in metal fabrication.

With strong capability in cutting sheet, tubes, and various metal profiles in round, square, U-, and H-shapes, it is an essential, practical tool in the following sectors:

• Construction: Metal façades, metal ceilings, interior and exterior components, canopies, and parking structures.
• Decorative and creative projects: Decorative elements for public spaces such as cafés, restaurants, airports, and malls, as well as decorative elements and metal accessories.
• Manufacturing and industrial components: Precision parts and equipment that require accurate cuts and clean edges, such as tube sheets, flanges, and brackets, as well as pipeline cutting for oil lines and the manufacturing of precision medical equipment.
  Because it is dual-purpose and versatile, this machine has broad industrial applications and can effectively replace other cutter lines.

Note:

To produce components such as tube sheets, you must use a Sheet and Tube Fiber Laser Cutting Machine.

Machines dedicated only to tubes (Tube Laser) are not suitable for this type of cutting.

Why Buy Sheet and Tube Fiber Laser Cutting Machine from Funoon Laser?

Funoon Laser is not just a seller of Sheet and Tube Fiber Laser Cutting Machine; we are your technical partner to your production line, providing an excellent end-to-end solution.

Our services cover every stage before, during, and after purchasing the dual-purpose sheet and tube cutter so you can work with greater confidence, accuracy, and speed, maintain stable output, and even scale up.

Funoon Laser is fully committed to helping you experience the least possible downtime.

Our services fall into 4 categories:

1- Our services before purchase

Selecting the right machine for each customer is crucial to us.

Before selling a Sheet & tube laser cutting machine, we review your working conditions, budget, production volume, and materials to recommend the best option.

Pre-purchase services include:

• Free expert consultation (in person and by phone)
• On-site visit to your workshop or production line for precise assessment and better recommendations
• Custom machine design to your requested dimensions, power, material type, and options
• Your visit to Funoon Laser facilities to review and inspect machines up close, with free transportation provided by the company

2- Our services during purchase and installation

Immediately after purchase, you receive the following services to ensure the machine operates at peak performance from day one:

• Free transport and installation at your site with high accuracy and safety
• Complete training for the operator on machine operation, Cypcut software, and maintenance tips
• Complete handover after final testing and performance approval of the Sheet and tube cutting machine

3- After-sales services

From Funoon Laser’s perspective, accurate service and support mean continuous accompaniment throughout the machine’s lifetime, not just at the moment of purchase.

Our after-sales services include:

• 24/7 phone and online support
• Fast on-site maintenance and repair
• Rapid spare-parts supply from Funoon Laser’s internal stock (even if we do not have the exact brand/model you want in stock, we will provide a substitute, so your line does not stop)

4- Warranty for the machine and critical parts

Our warranties are not just words. We fully commit to the following:

• 5-year warranty for the cutting table
• 12-month warranty for moving parts
• 12-month warranty for consumables such as lenses, nozzles, etc.
• 18-month warranty for the laser source (with guaranteed source operation beyond 100,000 hours at the highest quality)

Everything we do at Funoon Laser is focused on keeping your production line running at maximum efficiency with minimal downtime so that you can manufacture high-quality, high-precision products.

Consultation or Price Inquiry for Sheet and Tube Fiber Laser Cutting Machine

Funoon Laser experts are ready to advise you on the best Sheet and Tube Fiber Laser Cutting Machine based on your business needs, production volume, and budget.

For consultation, more information, or a price quote, contact us at:

+971 54 444 6373
