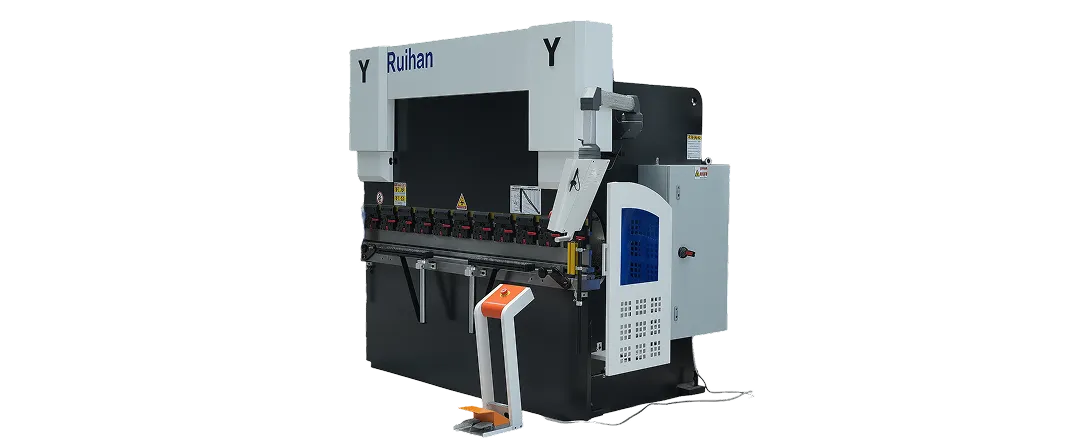

Press Brake Machine

The press brake machine from Funoon Laser features a powerful servo-hydraulic motor for fast, precise bending of all types of metal sheets.

These machines, categorized as metal bending press, offer bending capacities ranging from 63 tons to 250 tons, allowing you to choose the model that best fits your production requirements.

Keep in mind that as the input force of a machine increases, the strength of the frame becomes even more critical.

That’s why Funoon Laser equips its industrial models with a heavy-duty frame, ideal for handling longer sheets and higher input forces while maintaining complete stability.

All our products are CNC bending press machines, compatible with control systems such as Delem, ESA, and Cybelec.

These controllers precisely regulate the pressure applied to the sheet, ensuring accurate bending angles and consistent performance.

Of course, buyers can request different software options, but these are among the best and most reliable choices available.

Our press brake machines also feature advanced technologies, including the Crowning System for uniform pressure distribution and the Precision Backgauge System for precise sheet positioning, both of which significantly enhance bending accuracy and quality.

If you are looking to achieve a perfectly uniform and precise angle along the entire length of your sheet, the automatic press brake machines from Funoon Laser are your best choice.

At Funoon Laser, we’re not just machine suppliers; we’re your technical partner and trusted advisor throughout all stages of production and metal fabrication.

9 Key Features of Funoon Laser Press Brake Machines

Funoon Laser’s bending machines are designed with the same precision as folding machines, but with far greater power, rigidity, and stability, especially when working with thick metal sheets.

In fact, the unique combination of design and technology in our press brake machines enables smooth, accurate, and consistent bends, which is exactly what users expect from a press brake folding machine.

Below are the key advantages of Funoon Laser’s automatic press brake machines:

1- High-Precision Servo-Hydraulic Motor with On-Demand Design

Our CNC press brake machines are equipped with servo-hydraulic motors, offering higher speed and accuracy compared to traditional hydraulic systems.
This advanced technology, used in many high-end bending press machines, precisely controls pressure and bending angle.

The motor doesn’t merely generate force; it controls component movement with precision up to 0.01 mm (less than the thickness of a human hair), applying exact pressure and angle as instructed by the CNC system.

As a result, automatic press brake machines operate with extremely low error rates, producing entirely consistent results even in mass production.

The On-Demand design ensures that the servo-hydraulic motor activates only when pressure is required, minimizing energy consumption while maximizing speed and efficiency.

2- Heavy, Vibration-Free, and Rigid Frame

Funoon Laser’s press brake machines feature exceptionally strong frames capable of withstanding forces from 63 to 250 tons.

This engineering approach mirrors that of professional bending brake machines, ensuring stability and accuracy during the bending process.

Key frame advantages include:

• Anti-vibration and stable design: The structure of our sheet metal press brake minimizes vibration, ensuring steady performance during operation.
• Deflection-free construction: Each metal press brake is designed using computer simulations and stress-testing to eliminate deflection, maintaining accuracy for years of heavy use.
• Long-term durability: The robust construction of our CNC press brakes guarantees reliable and precise performance over extended lifetimes.

Note: For press brake machines with bending capacities from 160 to 250 tons, you can order custom dimensions up to 8 meters in length, perfectly tailored to your production line and ideal for bending longer sheets without compromising precision.

3- Crowning System for Uniform Pressure Distribution

In most CNC press brake machines on the market, when bending long sheets (3–4 meters or more), the center of the sheet tends to bend more than the edges because of uneven pressure.

Funoon Laser’s press brake machines completely eliminate this issue with their Crowning System.

This system automatically corrects ram or upper beam deflection through software-controlled adjustments, applying the appropriate pressure across the entire table to ensure uniform, accurate angles along the full length of the sheet.

Controlled by the machine’s CNC system (such as Delem or ESA), this process requires no manual recalibration or trial-and-error.

The results:

• Faster production and more precise bending angles
• Reduced setup and adjustment time
• Consistent quality in mass production

In short, the Crowning System acts as the intelligent core of Funoon Laser’s CNC press brake machines, automatically determining how much pressure each point of the sheet requires to maintain perfect angular uniformity.

4- Precision Backgauge System

The Backgauge is the rear positioning component that ensures each bend is performed precisely.

It acts as a backstop for the sheet in sheet metal press brake machines, enabling high-accuracy operation.

Driven by the servo-hydraulic motor and fully controlled via software, this system is entirely automatic.

It uses linear guides and ball screws to ensure smooth, fast, and vibration-free movement.

The operator simply enters the desired angle and distance in the control software, and the Backgauge automatically moves into the correct position.

It synchronizes perfectly with CNC controllers, receiving all parameters directly from the bending program.

With a movement range of 500 mm, Funoon Laser’s Backgauge system offers exceptional accuracy and speed, reducing manual measurement, minimizing human error, and enabling multiple bends to be performed sequentially and automatically.

5- Engineered Throat Depth Design

Funoon Laser’s press brake machines feature a throat depth of up to 220 mm, allowing for the bending of larger sheets, particularly in the middle sections.

This thoughtful engineering provides greater flexibility in producing complex parts and simplifies work positioning during bending.

6- User-Friendly CNC Controllers

Our CNC control systems are intuitive, graphical, and multilingual.

They enable quick operator training and significantly reduce the risk of human error.

The operator can easily input all necessary data, such as bend type, angle, and sheet position. At the same time, the system synchronizes automatically with the entire machine, ensuring fast, accurate, and repeatable results.

7- Compatible with a Wide Range of Metals

With Funoon Laser’s sheet metal press brake machines, you can bend various common metal sheets, including:

• Aluminum
• Steel
• Stainless steel
• Galvanized steel
• Nickel
• Brass
• Cast iron

8- Final Quality Assurance with Precision Punch & Die

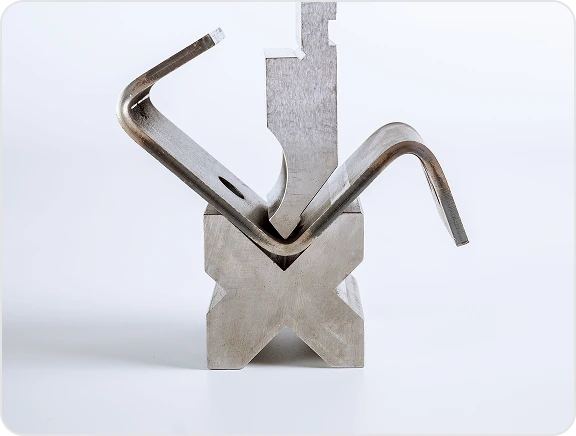

The Punch is the upper tool of the press brake machine that moves downward to apply pressure on the sheet, while the Die is the lower tool that determines the bend angle.

The Punch is mounted on the Ram or Upper Beam, moving precisely downward to press the sheet into the Die, forming the required bending angle.

Funoon Laser’s Punch and Die tools are manufactured with high-precision machining from hardened alloy steel, ensuring maximum resistance to wear, deformation, and continuous high-pressure loads.

This guarantees that each bend is perfectly accurate, uniform, and aligned with your original design drawing.

9- Comprehensive Range of Punch & Die Tools

Funoon Laser provides a complete set of multi-purpose, precision Punches and Dies with every press brake machine.

These tools are designed for nearly all bending applications, from sharp, angular bends to smooth, curved ones.

You can choose from a range of Dies and Punches that match your specific production needs to achieve the best balance of accuracy, speed, and final quality.

Each press brake bending machine from Funoon Laser combines power, precision, and CNC technology, engineered for modern production lines.

In summary, Funoon Laser’s Press Brake Machines combine advanced technology, precise design, and versatile tooling to deliver a reliable solution for modern industrial manufacturing.

Advantages of Buying a Press Brake Machine from Funoon Laser

Funoon Laser is not just offering press brake machines for sale; we are your technical partner throughout the entire production process.

Alongside machine sales, we provide a full range of specialized services designed to minimize downtime and maximize efficiency in your bending operations.

When you purchase an automatic press brake machine from Funoon Laser, you benefit from comprehensive support before, during, and after purchase:

1- Before Purchase: Helping You Make an Informed Decision

Before any sale, we carefully assess your working conditions, material types, product dimensions, workspace, and production capacity to provide the machine that best fits your exact needs.

Our pre-purchase services include:

• Free professional consultation (in-person or by phone)
• On-site inspection of your workshop or factory to evaluate space and infrastructure
• Free transportation and on-site testing of our press brake machines at Funoon Laser’s facility
• Option to customize sheet metal press brake specifications based on your production line’s needs, including budget, sheet length, and required power

2- During Purchase & Installation: Hassle-Free Commissioning

Once your order is confirmed, and you have purchased a press brake machine from us, Funoon Laser’s technical team manages all steps, from delivery to installation and training.

Our services at this stage include:

• Free transportation and installation at your site
• Full calibration and performance testing of the machine
• Complete and free operator training on both machine operation and controller software, plus maintenance and service guidance

3- After Purchase: Full and Ongoing Support

At Funoon Laser, a sale marks the beginning of a long-term partnership, not the end.

After the machine installation, we stand by your side throughout every stage of operation to ensure your production runs continuously without interruption.

Our after-sales support includes:

• 24/7 online and phone technical support
• Rapid on-site service by professional technicians
• Immediate supply of spare parts from Funoon Laser’s warehouse
  (Even if a part is temporarily unavailable, we’ll provide a replacement to keep your production running until a new one arrives.)

4- Warranty and Performance Commitment: Real Assurance, Not Just Words

We don’t just talk about the quality of our metal press brake machines. We guarantee it.

Every component of your press brake machine is backed by its own dedicated warranty and full service support.

For detailed warranty information, please contact our support team:

📞 +971 54 444 6373

Looking for the Best Press Brake Machine Price?

Funoon Laser offers the best press brake machine prices in the UAE, because we don’t just sell a ready-made unit. We provide a machine precisely matched to your production needs.

Our goal is to ensure you never pay for features you’ll never use.

We tailor the power, precision, and performance of your machine to your exact requirements, so you won’t need a replacement in the future.

For an accurate CNC press brake price quote, contact our technical and support experts today.
